FACT OF INTEREST

YEAR: 2004



SPECIFICATIONS:



LENGTH:

7,78 kms.



KIND OF WORK:

Double track of UIC wide High-Speed Rail Roadway



(Roadway total wide, 14,00 m).



Maximum speed: 250 km/h.



Traffic type: Mixed (Passengers and goods).



TUNNELS: 2

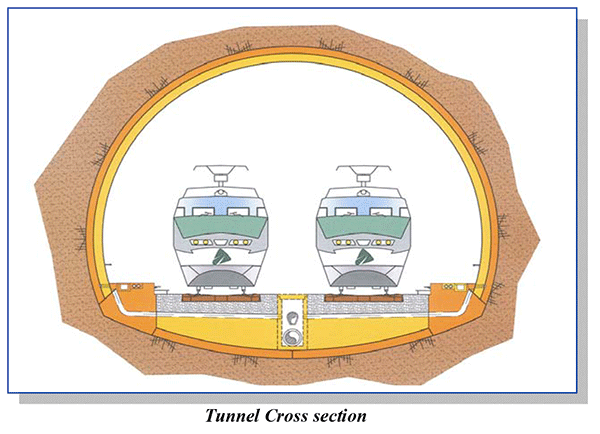

« Aduna tunnel »: 4.540,778 m long; Free cross-sectional tunnel area 85 m²



« Andoain tunnel »: 1.706,584 m long; Free cross-sectional tunnel area 85 m²



STRUCTURES:

3 Viaducts:



« Antzibar river viaduct »: 198 m long, 4 spans, 55 m maximum span and 2.772,0 m² area



« Oria river viaduct »: 175 m long, 3 spans, 78 m maximum span and 2.450,0 m² area.



« GI-131 highway viaduct »: 220 m long, 5 spans, 50 m maximum span and 3.080,0 m² area



CONTRACT BUDGET: 408.000,00 € (VAT included)



ESTIMATED BUDGET TO INVITE TENDERS OF THE WORKS: 112.725.946,68 € (VAT included)



PERIOD PROVIDED FOR CONSTRUCTION: 30 months.


CLIENT: SPANISH MINISTRY OF PUBLIC WORKS. Railroads Administration.
